COAX CABLES

Coax Cables

Black Elegant and Modern Startup Pitch D

L-3.3CUHD

Designed for fixed installation
Riser rated
Max Transmission Distance: 190 ft
Custom colors (please inquire)

Check the specs

L-5.5CUHD

Designed for fixed installation
Riser rated
Max Transmission Distance: 335 ft
Custom colors (please inquire)

Check the specs

L-8CUHD

Designed for fixed installation
Riser rated
Max Transmission Distance: 469 ft
Custom colors (please inquire)

Check the specs

L-5.5CUHws

Designed for mobile applications
Max Transmission Distance: 233 ft
Custom colors (please inquire)

Check the specs

L-2.5CHD

Riser rated
Max Transmission Distance: 141 ft
Can be used for short and flexible distances
Custom colors (please inquire)

Check the specs

L-4.5CHD

Riser rated
Max Transmission Distance: 143 ft
Custom colors (please inquire)

Check the specs

Panels

PANELS

32MCKA-ST/STS

Jack Options: MCVJKA-STW (Normal Through) / MCVJKA-STS (Straight Through)
Staggered BNC rear jacks
Can be recessed 25mm

Check the drawing

32mcka-st/sts-1.5u

Jack Options: MCVJKA-STW (Normal Through) / MCVJKA-STS (Straight Through)
Staggered BNC rear jacks
Can be recessed 25mm

Check the drawing

32mcka-st/sts-2u

Jack Options: MCVJKA-STW (Normal Through) / MCVJKA-STS (Straight Through)
Staggered BNC rear jacks
Can be recessed 25mm

Check the drawing

Connectors

BNC & MICRO BNC CONNECTORS

bcp-d33uhd

BNC connector to terminate the L-3.3CUHD

Check the drawing

bcp-d55UHD

BNC connector to terminate the L-5.5CUHD

Check the drawing

bcp-d8UHD

BNC connector to terminate the L-8CUHD

Check the drawing

bcp-d55uhw

BNC connector to terminate the L-5.5CUHWS

Check the drawing

bcp-b25hd

BNC connector to terminate the L-2.5CHD

Check the drawing

bcp-b53

BNC connector to terminate the L-4.5CHD

Check the drawing

bcp-ld25hd

Right-angle BNC connector to terminate the L-2.5CHD

Check the drawing

Check the specs

hbcp-d33uhda

Micro BNC connector to terminate the L-3.3CUHD

Check the drawing

hbcp-d55uhd

Micro BNC connector to terminate the L-5.5CUHD

Check the drawing

hbcp-d25hda

Micro BNC connector to terminate the L-2.5CHD

Check the drawing

hbcp-d53a

Micro BNC connector to terminate the L-4.5CHD

Check the drawing

Tooling

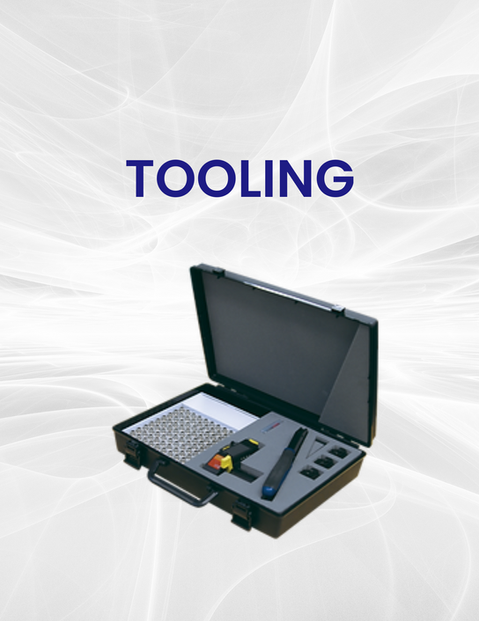

TOOLING

What You Need to Succeed

TS100*

TC-1 & Die Sets

The TS100U & TS100E variants are the tool needed to strip 12G cabling. The yellow dial can be used to select cable dimension presets and if a preset does not appear on the device the tool can be adjusted to meet needs of the cable.

BET-BNC & BET-HBNC Extraction Tools

Our extraction tools are designed to enable easy installation and removal of BNC and Micro-BNC connectors, simplifying patchbay and equipment setup where space is limited.

The TC-1 is a handheld crimp tool that accepts interchangeable die sets. Please note that the L-8CUHD can only be used with the TC-2. These tools offer a scissor ratchet action and has an emergency release lever. The die set ensures accuracy of your cable, securing all components together. Please refer to the die set reference sheet when selecting the correct die.
